Ductile Iron UL FM Flanged Gate Valve Resiient Seated For Fire Protection Service

Name: Ductile Iron UL FM Flanged Gate Valve Resiient Seated For Fire Protection Service
Brand: AFC, Multiple list and Private label is available
Price: 1 USD

Wholesale Ductile Iron UL FM Flanged Gate Valve Resiient Seated For Fire Protection Service from china suppliers

Brand Name : AFC, Multiple list and Private label is available

Model Number : FRHF FRHG FRHX

Certification : FM1120 UL 262

Place of Origin : China

MOQ : 1

Price : USD RMB

Payment Terms : L/C, T/T

Supply Ability : 60 days for 2 containers

Delivery Time : Based on order

Packaging Details : Plywood cases

Material : Ductile Iron

Color : Red EY3000

Connection : Flange Groove

Stem : SS420

Wedge : EPDM Vulcanized

Flange : AISI B16.4 PN16

Contact Now

FM/UL Gate Valve Ductile Iron Resilient Seated for Fire Protection Service

Feature:

The body of FM/UL gate valve is of the straightway type and when the gate is fully open, a waterway diameter equal the inside diameter of a mating pipe

The body and bonnet shall be made of materials having strength, rigidity, and resistance to corrosion.

An outside-screw-and-yoke valve is provided with a handwheel to facilitate operation

Quality Control

IQC	Check all incoming parts
IPQC	Check the production process is qualified
FQC	All valves are pressure tested
OQC	Check the valve's outlook and packing

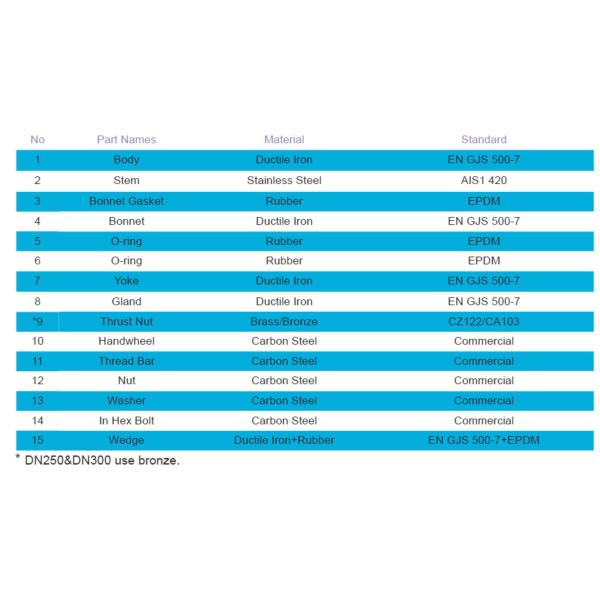

Material

Ductile Iron UL FM Flanged Gate Valve Resiient Seated For Fire Protection Service

Dimension

Ductile Iron UL FM Flanged Gate Valve Resiient Seated For Fire Protection Service

Size		Model No.	L	ΦD		ΦK		nΦd		H close	H close
IN	MM	FRH(F/G/X)	mm	PN16	ANSI	PN16	ANSI	PN16	ANSI	mm	mm
2	50	FRHF-0050	178	165	152	125	121	4Φ19	4Φ19	312	382
2 1/2	65	FRHF-0065	190	185	178	145	140	4Φ19	4Φ19	338	408
3	80	FRHF-0080	203	200	191	160	152	8Φ19	4Φ19	393	480
4	100	FRHF-0100	229	220	229	180	191	8Φ19	8Φ19	441	544
5	125	FRHF-0125	254	250	-	210	-	8Φ19	8Φ23	559	692
6	150	FRHF-0150	267	285	279	240	241	8Φ23	8Φ23	598	759
8	200	FRHF-0200	292	340	343	295	298	12Φ23	8Φ23	743	953
10	250	FRHF-0250	330	400	406	355	362	12Φ28	12Φ26	880	1140
12	300	FRHF-0300	356	455	483	410	432	12Φ28	12Φ26	1009	1319

Product Tags:

soft seated gate valve

fire fighting gate valve

Ductile Iron UL FM Flanged Gate Valve Resiient Seated For Fire Protection Service Images
