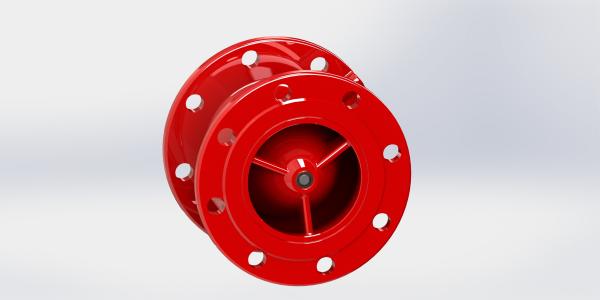

Hydro Dynamic Ductile Iron Non Slam Check Valve Low Head Loss

Hydro dynamic Ductile Iron Non Slam Check Valve Low Head Loss

Description:

NSCV- Non Slam Check Valve is used as protection against reverse flow when power failure in areas where noise pollution or water hammering is a critical issue. It can provide not only quiet performance but also low head loss.

Features:

· High strength ductile iron body used for durability and less weight.
· Advanced dynamic design of single body with diffuser provides streamline flow and assures lower head loss.
· One of the lowest head loss check valve, big save in pumping power cost, valve disc with shorter stroker and spring reverse faster than most of check valve.
· Coated with powder epoxy both inside & outside for corrosion resistance.
· Bronze bushing reduce wearing problem during operation.
· Hydrodynamic design with spring ensures non slamming and water hammerless.
· Stainless steel spring hidden in the diffuser under protection while valve in operation.
· Disc will positively close before reverse flow, and maximize the closing speed up to 0.2 Sec.
· Installation can be vertical/horizontal/inclined.
· Comply with EN 558-1, ISO 5752 and EN 1092-2, ISO 7005-2 flange dimension.

Technical Data:

Service Fields:

Mainly used for clean water, precleaned sewage water, Fire-fighting, Irrigation, Cooling and HVAC System.

Dimension:

DN50 - DN350

DN400 - DN600

Materials:

DN50-DN350
